Introduction
Build Digital repeater using the Tait-TB7100 (Analog Repeater), support DMR YSF P25 D-Star NXDN M17 POCSAG. Add the COS/SQL pinout support FM mode (@Alan Matthews).
Pinout of Repeater(DB15)

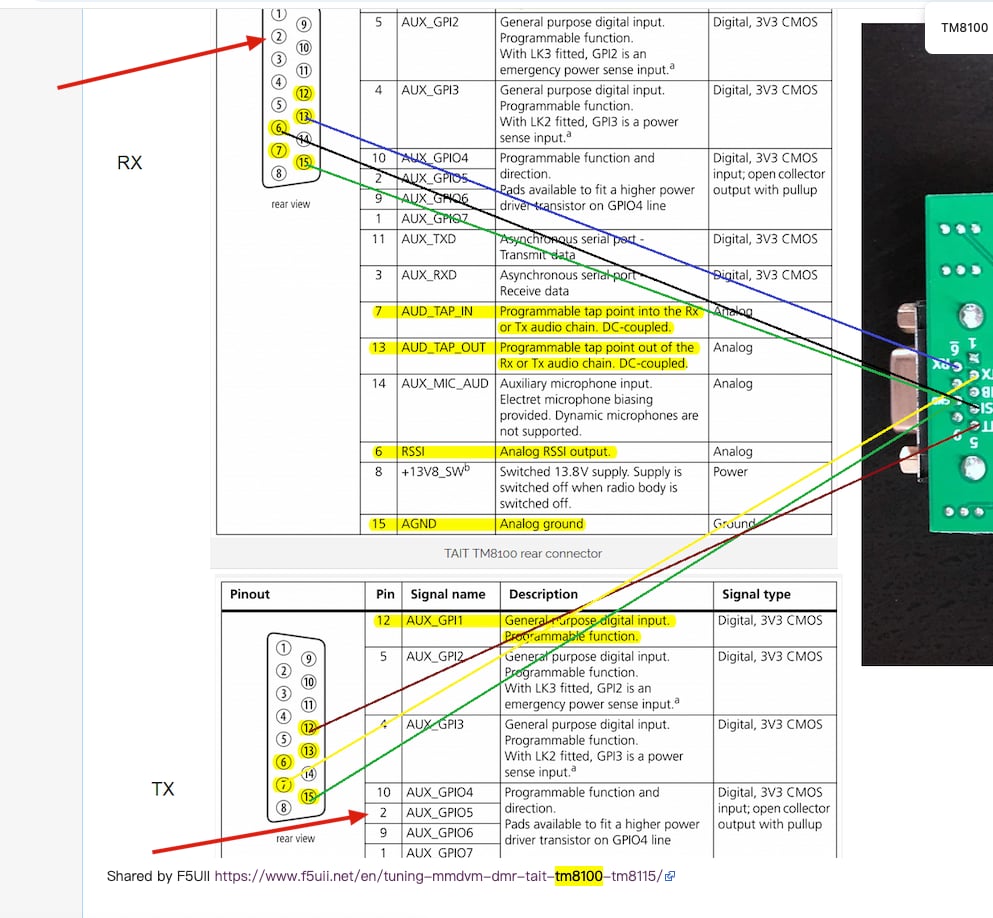

** Tait TM8200 TM8100 pinout definition

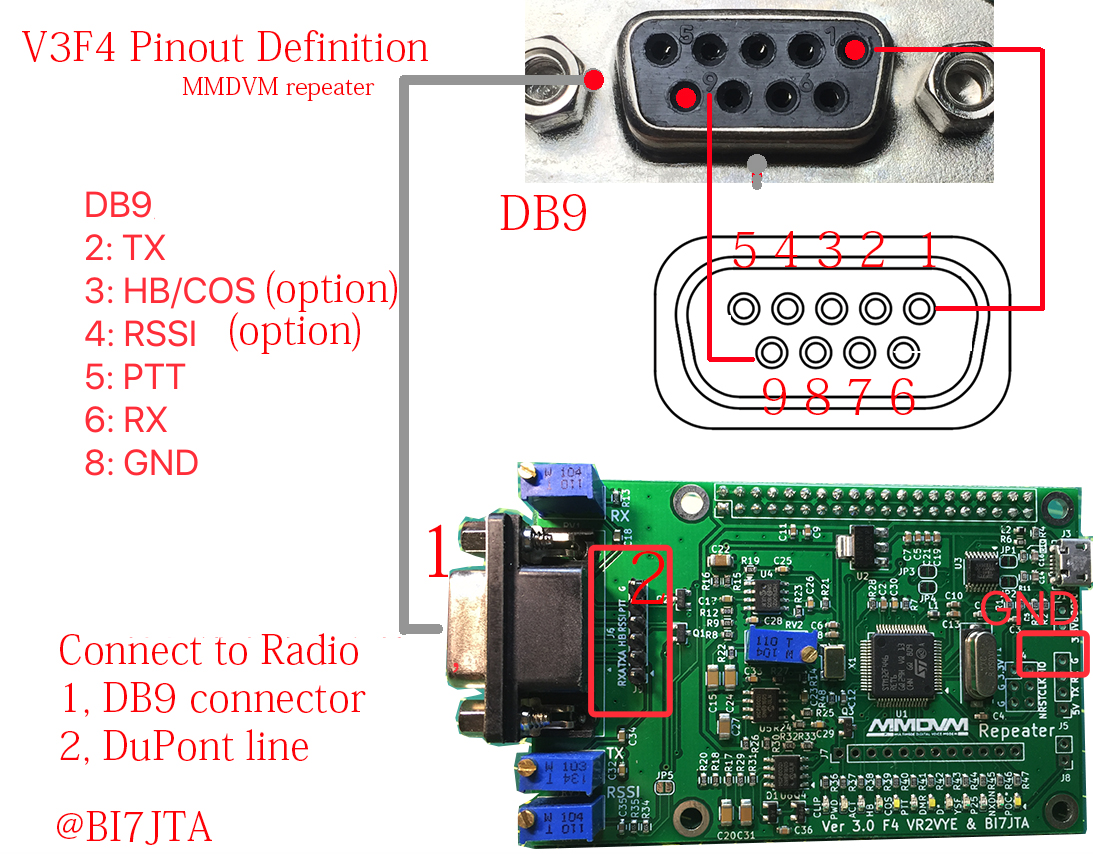

** MMDVM V3F4 board pinout definition.
Programming of TM8200 TM8100

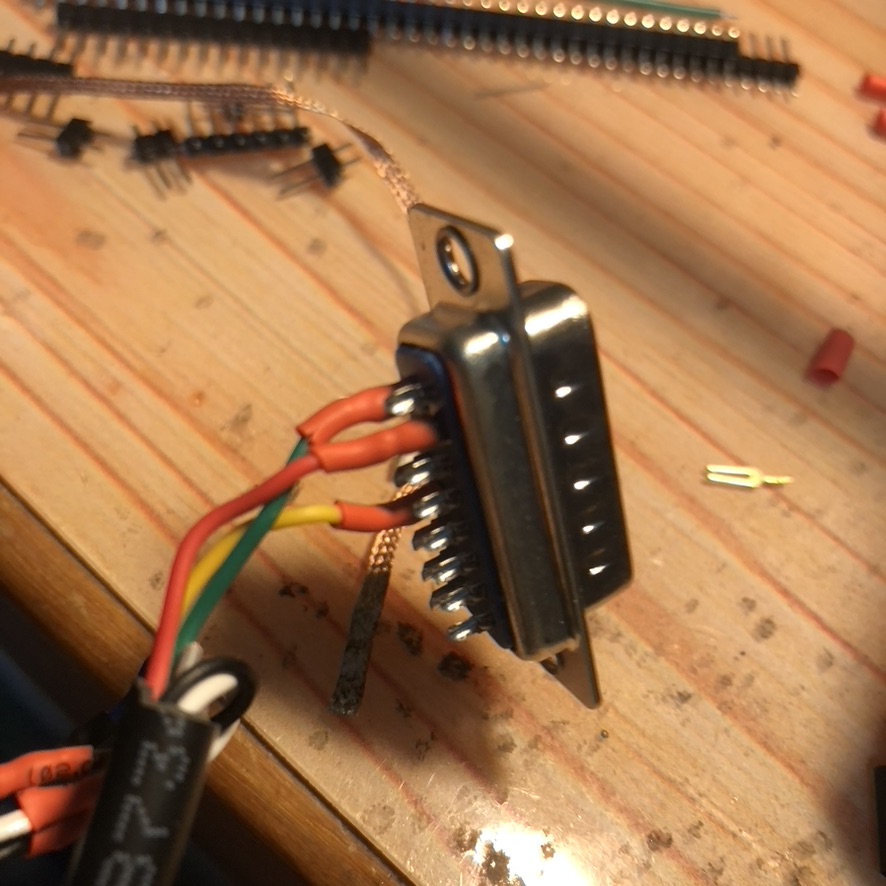

Finished cable (Duplex two radios)

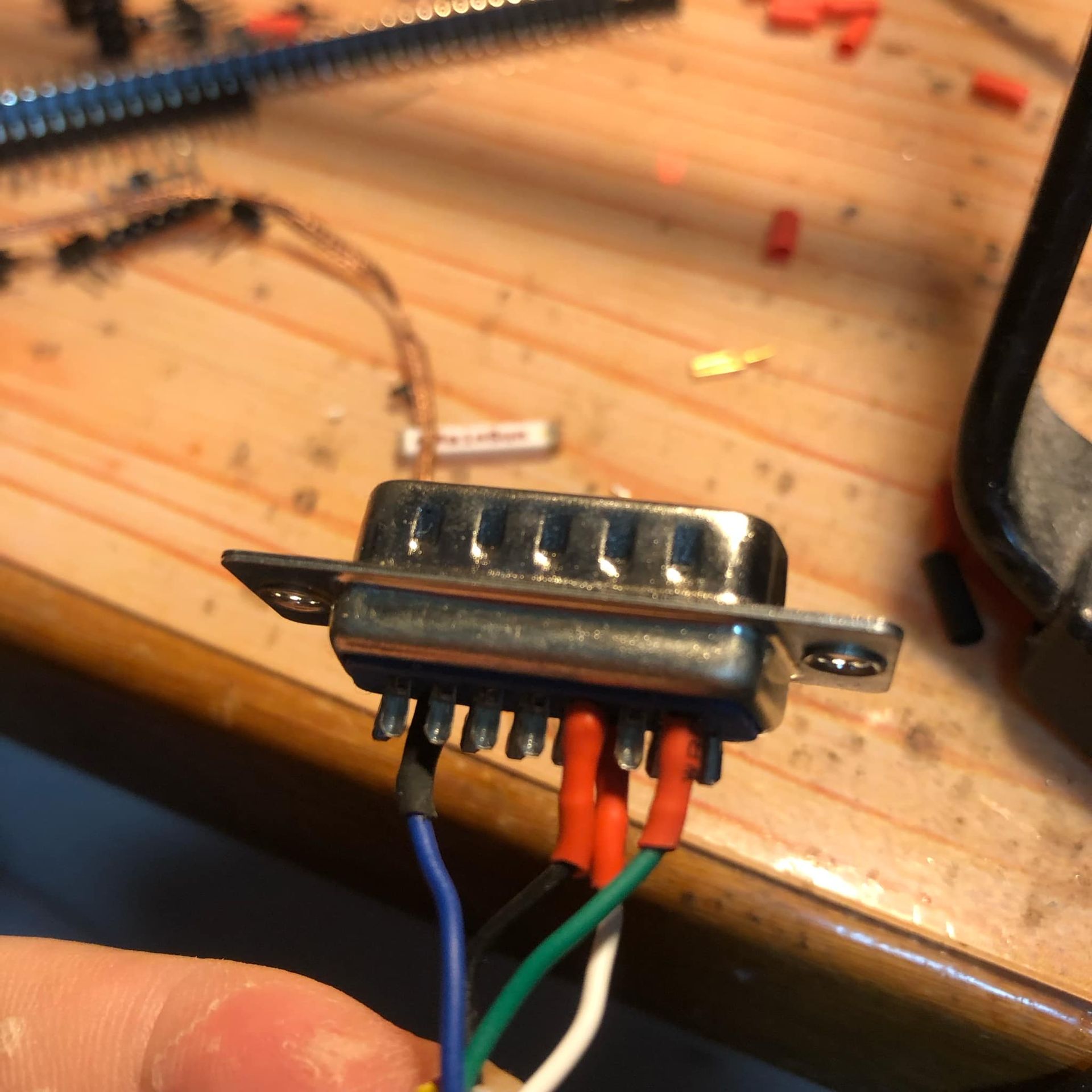

RX side: Blue(COS/SQL), Black(RX), White(RSSi), Green(GND)

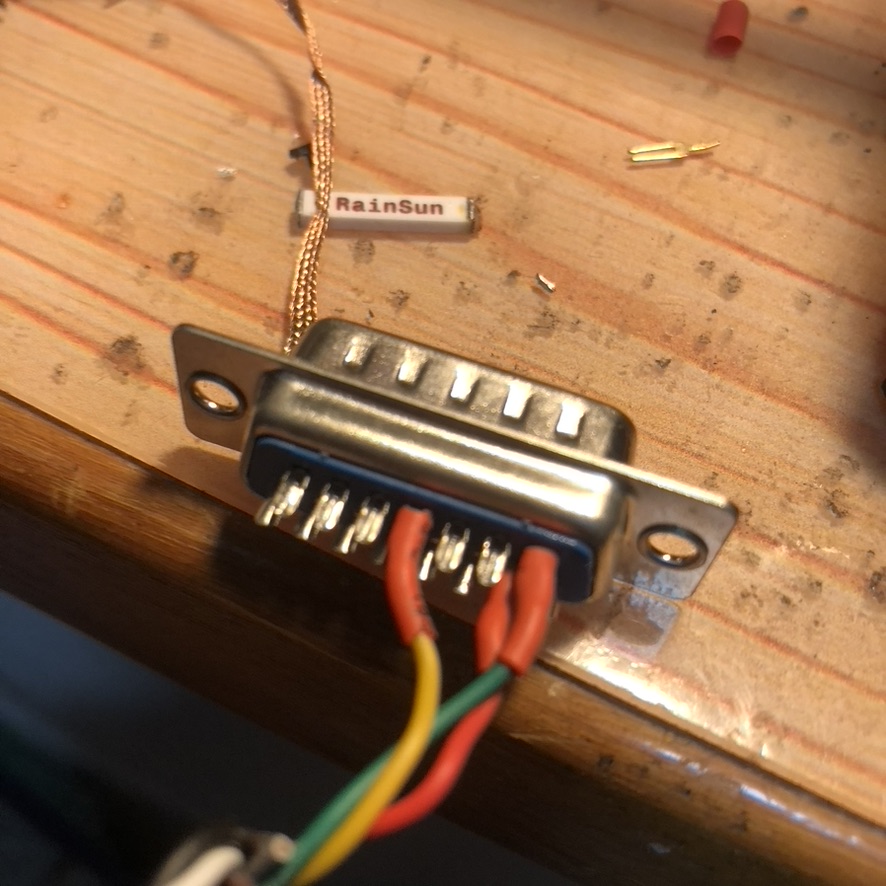

TX Side: TX(Red), Yellow(PTT), Green(GND)

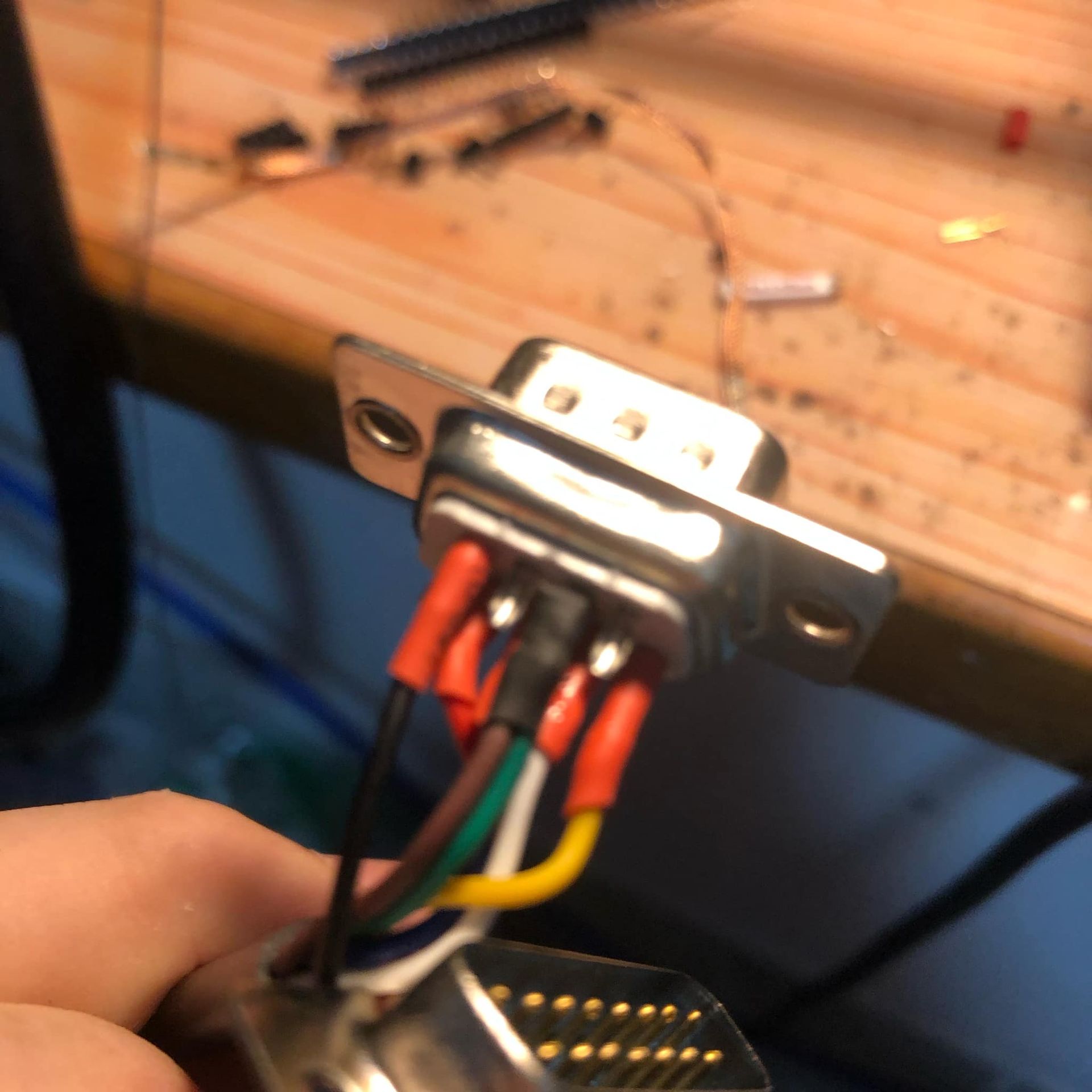

for Simplex(One radio)
References
